Mopar1973Man

Oh the expense is very justified... I bought mine back in 2003 for $800 form Dodge Dealer in Lewiston, ID and not having brake issues... Priceless. The fact I've only install 3 sets of brakes in 417k miles and only one set of rotors. That is also priceless. Even at today's prices for a PacBrake PRXB is $1,200 at least I would buy one tomorrow to replace my current one if it failed. That exhaust brake is even stronger than my current Jacobs Exhaust Brake. This would be my next exhaust brake. Inline I could then have any turbo I wanted... https://www.dieselautopower.com/pacbrake-c44064-inline-mount-prxb-exhaust-brake Direct mount is like what I've got now that limits me to the current turbo. https://www.dieselautopower.com/pacbrake-c44075-direct-mount-prxb-max-flow-exhaust-brake

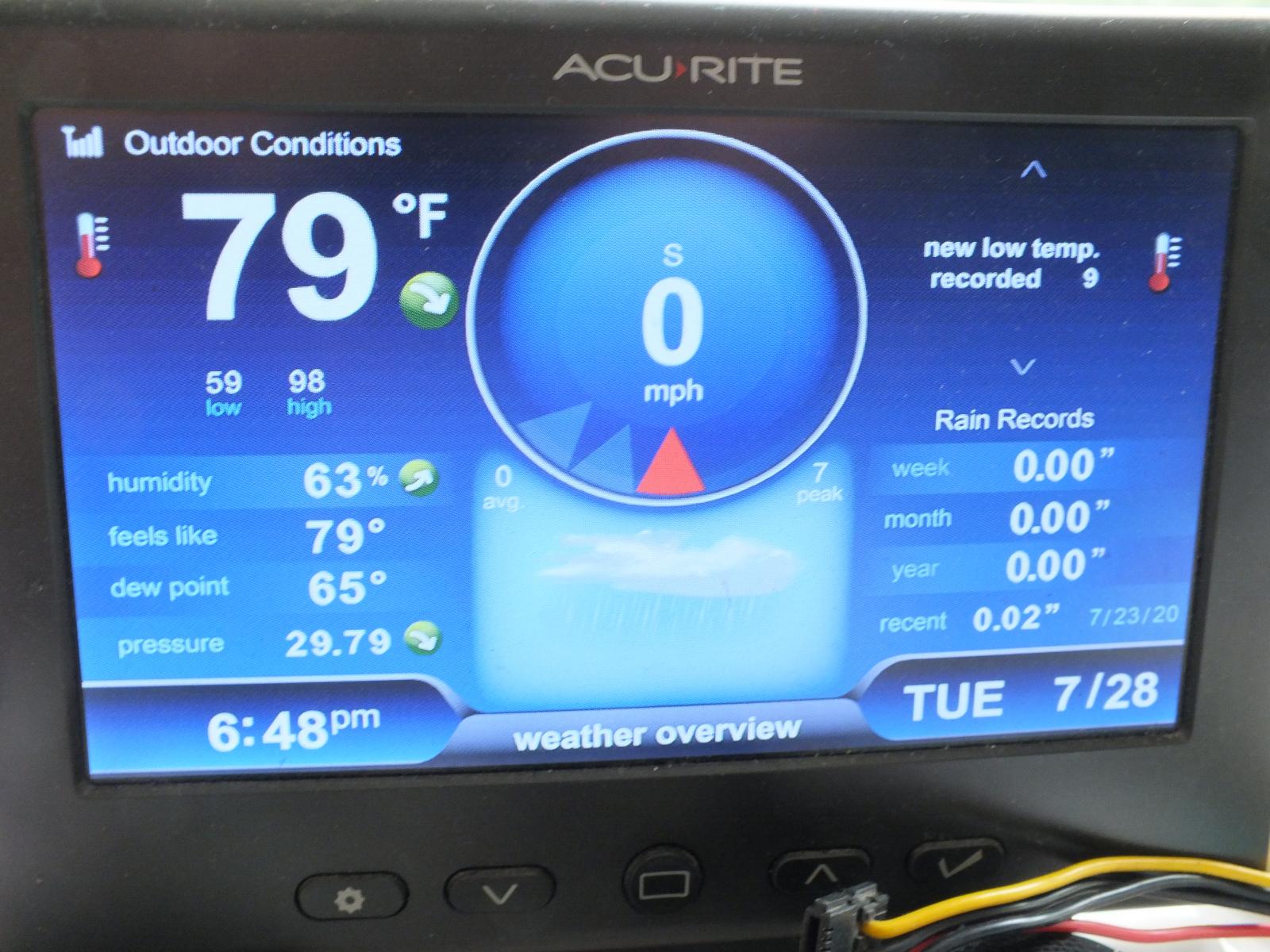

So do we... Started out at about 81%. Then reaching 98*F outside. Ugh really rough to work in. What size plumbing do you have on the truck? 3/8" hose or 1/2" hose and fittings? 1/2 inch hose and plumbing gives the most volume per amount of pressure. I typically only see about 2 to 3 PSI drop from idle to WOT.

Yup. Exactly. I allow my throttle to modulate the exhaust brake and control the speed. This is why I will not suggest the 3rd gen brakes. You get slightly larger pad and rotor but done nothing to aid in actual speed control 3rd gen brakes still get hot if you use the service brake to control speed. But with a exhaust brake you can control your speed so you never touch the service brakes. Several people out did the same thing for all the long canyon roads and needlessly to say does no good still get the brakes hot and still end up dragging them all the way down the hills. Exhaust brake nothing to get hot and service brakes are ready at the drop of a hat and never have to worry about brake fade or failure.

That's why I went with the 4,000 lumens which is the same level of light as my Morimoto HID's. They are not blinding bright and you can adjust the headlight to get you pattern correct. The bulb I listed is the ones I've got in my 1996 Dodge Ram 1500. Had them nearly a year now and worked great on the highway and plenty of light. Your on your own going above 4,000 lumens. I will not suggest anyone buying a brighter bulb than 4,000 lumens.

Should be a nice bump in power.

When would all enjoy that funeral dinner of Dripley's should be plenty of chicken meat. Just have figure out which sauce would be best ranch, BBQ, honey mustard, etc. Oh the Chick Fil A sauce is darn good too with the fries. @dripley I'm not bringing the Idaho potatoes to your funeral... You'll just have to find another sucker for french fries.

Pull both shafts and inspect them closely. I just had my passenger side start ticking randomly. One day I tore it down to find out the u-joint appears fine but after a closer look I lost a clip on one cap and the cap was backing out. Then on top the bearings where gone on the bearing across from it. More obvious when the shaft is out and your able to move it around more in your hands and feel the slop.

Just try and hold in the 14 to 20 PSI range optimally.

Don't bother with 3rd Gen. Look towards a exhaust brake. Way better brake life at over 200k miles and going. 3rd gen might be a bigger caliper and clamping but wear is going to be the same. Exhaust brake if used properly you can do 95 to 99% of your stopping without ever touching the brake but below 20 MPH. This will reduced brake wear greatly. It might be a big one time purchase but the exhaust brake technically doesn't wear out. I've had my exhaust brake since 23k miles still going at 417k miles. My last set of rear pads where so old that the road salt rotted the pad off the backing plate and still 75% of pad left.

Another one I ran into is when people bleed the system when the fluid is nearly black in color typically push all the debris from the master into the bottom of the caliper and wedging up the pistons so they don't return properly. The calipers have to stay clean inside to keep the pistons moving freely. Another occurrence I've seen is heavy brake use (typically no exhaust brake installed) and heating the brake fluid till it scorches slightly causing the brake fluid to cake up on the pistons causing the brakes to drag too.

7 to 12 PSI like Dripley said is the optimal fuel pressure for starting. Above 12 PSI it tends to push the timing piston too far advanced making nearly impossible to start. Hence why the ECM pulses a 50% duty cycle during starting to reduce fuel pressure and make it easier starting. Way too many people are trying to keep above 20 PSI for run pressure and find out your starting pressure is too high. You could do the starter relay mod so during the time the starter is running it holds the power off to the lift pump. But I suggest just getting your fuel pressure down. You not going to gain any better return flow on the VP44 when the return hole is tiny any ways. Pull the overflow valve out and using a mirror and look at it. It's small port.

Oh... Idaho you think is cooler? HA! It was a 100*F here yesterday typically I see 115 to 117*F in Riggins, ID. Elevation ranges from 700 feet in Lewiston, ID to 9,000 feet at Heaven's Gate (Riggins, ID). Looking at what temps are around the VP44 intake is more dominant about fuel temp than block temperature typically. Being the intake temps roughly what fuel temp will be. Injectors wise depending on how old / miles could be the pop pressure is low. OD on an auto makes the final ratio smaller just by a bit more. 0.75 vs 0.69. Then I can throw in rotational mass as for every 1 pound of rotational mass you can ditch is like 8 pounds off the frame. Bigger and heavier tires will make for higher engine loads. Hence why I ran the other direction away from large tires down to smaller tire to reduce engine loading. Gives me better efficiency all the way around ditching extra rotational mass that just only looks cool, and steals power. Being Iv'e got grades around here that most don't think about. Several roads are between 10 to 16% grades around here. Just like I've gotta head back to Anatone, WA to finish my injection pump project on a CASE C580 back hoe. That trip is nothing but up and down mountains. Running as high as 4,000 feet and dropping to mere 700 feet above sea level. Temperatures on my last trip were around a 100*F in Lewiston, ID during the day. Other than some mechanical differences climate wise its pretty close.

Can't forget "The Chicken Man". Even though I've never met the man in person yet. I've talked to many times on the phone for years. He's just part of the family here. Just showed up hungry and just never left.

More holes typically will have a better atomization, better burn, cleaner for street application. 7 x 0.010 is what I'm running but it works out to 150 HP injectors on 24 valve trucks.

Typically on my truck the IAT and fuel temp run the same temps.

https://www.amazon.com/gp/product/B07FJVPWYF/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1 https://www.superbrightleds.com/moreinfo/miniature-and-subminiature-bulbs/9004-led-fanless-headlight-conversion-kit-with-internal-drivers-4000-lumensset/3910/8027/

Nice one @Russ Roth !!! @dripley needs to buy one!

Just what I did to the 1996 Dodge Ram 1500. I bought a brand set of clear headlight housings. Then went out and picked up a set of 4,000 lumen LED bulbs (same as the HID's bulbs). This is all directly plug and play no messing with wiring and re-pinning plugs. I highly suggest you do a clear lens headlight housing. Then the LED's for 9004 are listed in the store I've just not ordered any being I've not sold any of the smaller bulbs yet.

What was your intake temperature?

You've done your home work. Yeah I just got a call from a gent fighting this exact problem on his truck and its lifted and oversized tires are being used. Pretty common. The biggest problem is always when over sized tires are used it changes the geometry pretty good. Even you admit that... Tires are the biggest problem with these front ends once you step up past 285's it just gets worse. I've opted to stay away from oversized tires. I've used 235's for years now step down one 1 inch to 245's. The 245's gave me lower EGT's, better towing power, better towing MPG's. (14.7 MPG towing 17,300 GCW). Never had any steering issues. Everything last at least 100k miles or more. My Ball joints are at 200k miles now. Brakes last over 200k miles. Tie rods ends went 350k miles. OE steering box was still tight but rusted the shaft damaged the seal. BlueTop Quick ratio (only can be used on 265's or smaller). Track bar will last at least 100k miles. I'm currently on 245/75 R16 Hankook ATm's (30.5 inches). Been through 4 sets of these getting between 60k to 70k miles on a set of tires. I destroyed 1972 Dodge Power Wagon doing lift kit and over sized tires. I was breaking the front drive line, u-joints, steering boxes, and ball joints, etc. Barely got a 100k out that truck but spent nearly every weekend fixing the front axle and suspension. Since I kept away from oversized tires and lift kits on my current truck I've not seen any trouble with my truck now at 417k miles!

Most of us prefer the VCO's.

That the weird part. Like I followed @Me78569 guidance and got the 7 x 0.010 and popped to 3320 bar. Then my tune was different than what my truck liked. There is too many factors to even go over that affect why one truck likes more timing but the other likes less timing. Basically what I try to do is work more with the first 2 band (1,500 and 2,000) in timing. Now if you find those two that the truck performs the best at low engine loads then you can build the rest from it. Most people used the 1,500 to 2,000 bands the most so if you focus there to get started you'll find the right timing sooner. Now you know you going to need like 18* to 19* in the 2,000 RPM slider and then you'll need about a +2 to cruise timing that gives you a 20* at cruise.

@Great work! is right all those systems need to see the tach signal through the CCD network. I'm going to assume you got a P1698 code. Since the CCD network is not talking to the PCM then the PCM doesn't know the engine is running it can't see the tach signal.

Remember there is values like cetane that affect your tune. Out here the cetane is really low now and added timing is welcomed. Injector pop pressure will affect the injectors too.

Ok now I'm getting real information now I took some time to head into town and just talk. I found out the biggest hotel in town is closed because one employee was found positive for COVID-19. Hotel remain closed for now. There is rumors of a construction crew that has the virus too. The rest of town is still functional but lacking in business. Being the rock closure and the amount of time to get back and forth to town is getting old on every one.
